      Anatomy of the Eye

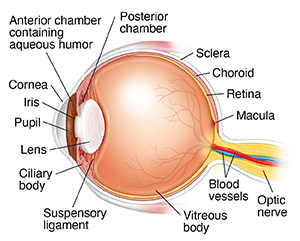

      Anatomy of the eye, internal
      Click Image to Enlarge

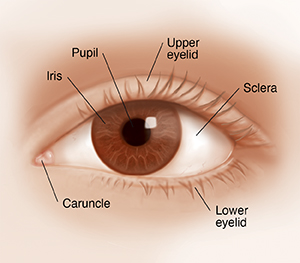

      Anatomy of the eye, external
      Click Image to Enlarge

      Anterior chamber. The front section of the eye's interior where aqueous humor flows in and out, providing nourishment to the eye.

      Aqueous humor. The clear watery fluid in the front of the eyeball.

      Blood vessels. Tubes (arteries and veins) that carry blood to and from the eye.

      Caruncle. A small, red portion of the corner of the eye that contains modified sebaceous and sweat glands.

      Choroid. The thin, blood-rich membrane that lies between the retina and the sclera and is responsible for supplying blood to the outer portion of the retina.

      Ciliary body. The part of the eye that produces aqueous humor.

      Cornea. The clear, dome-shaped surface that covers the front of the eye.

      Iris. The colored part of the eye. The iris is partly responsible for regulating the amount of light permitted to enter the eye.

      Lens (also called crystalline lens). The transparent structure inside the eye that focuses light rays onto the retina.

      Lower eyelid. Skin that covers the lower part of the eyeball, including the cornea, when closed.

      Macula. The central portion of the retina that allows us to see fine details.

      Optic nerve. A bundle of nerve fibers that connect the retina with the brain. The optic nerve carries signals of light, dark, and colors to a part of the brain called the visual cortex, which assembles the signals into images and produces vision.

      Posterior chamber. The back part of the eye's interior.

      Pupil. The opening in the middle of the iris through which light passes to the back of the eye.

      Retina. The light-sensitive nerve layer that lines the inside of the back of the eye. The retina senses light and creates impulses that are sent through the optic nerve to the brain.

      Sclera. The white visible portion of the eyeball. The muscles that move the eyeball are attached to the sclera.

      Suspensory ligament of lens. A series of fibers that connects the ciliary body of the eye with the lens, holding it in place.

      Upper eyelid. Skin that covers the upper part of the eyeball, including the cornea, when closed.

      Vitreous body. A clear, jelly-like substance that fills the back part of the eye.
